Fixed, casement, awning, tilt and turn, sliding and window wall — six product families across three performance tiers. Thermally broken 6063-T5 aluminum, all-tempered Low-E glazing, and custom-to-the-millimeter sizing as standard.

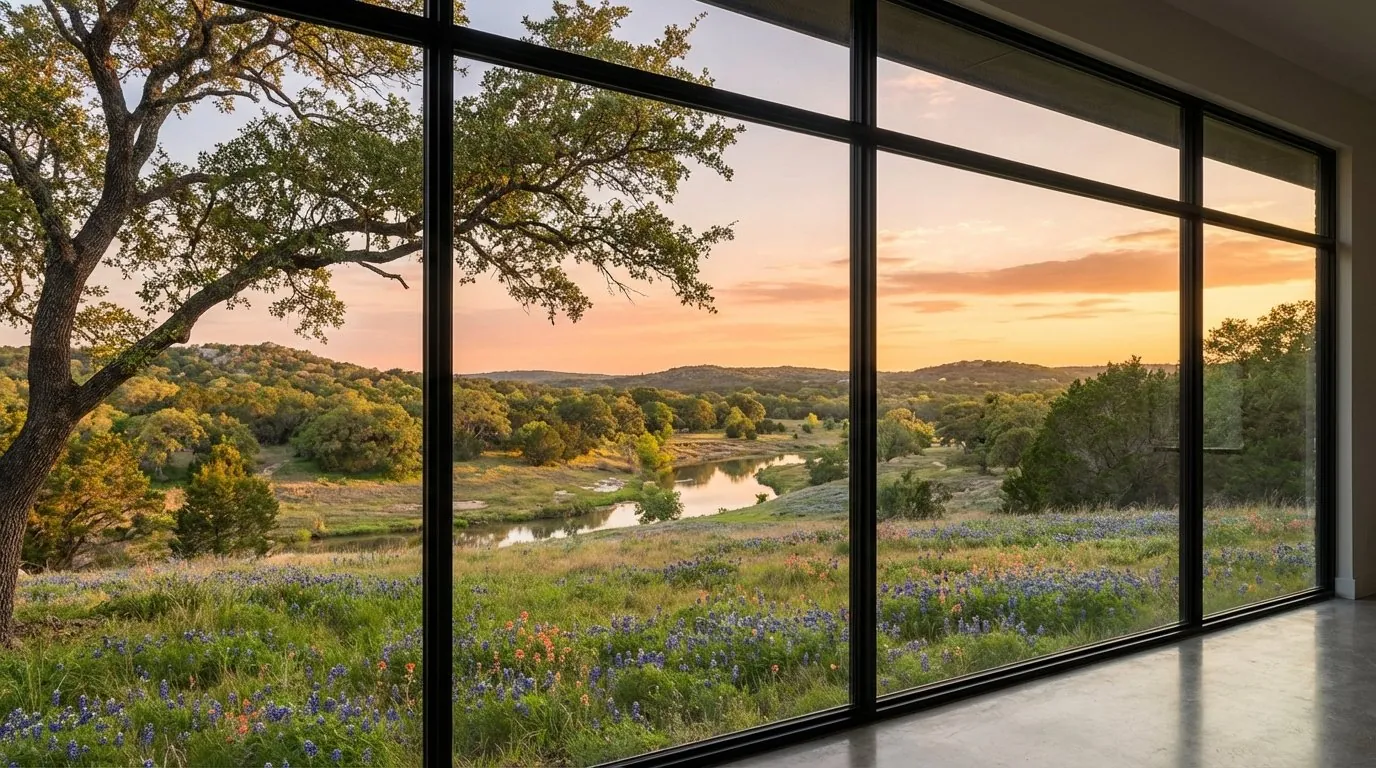

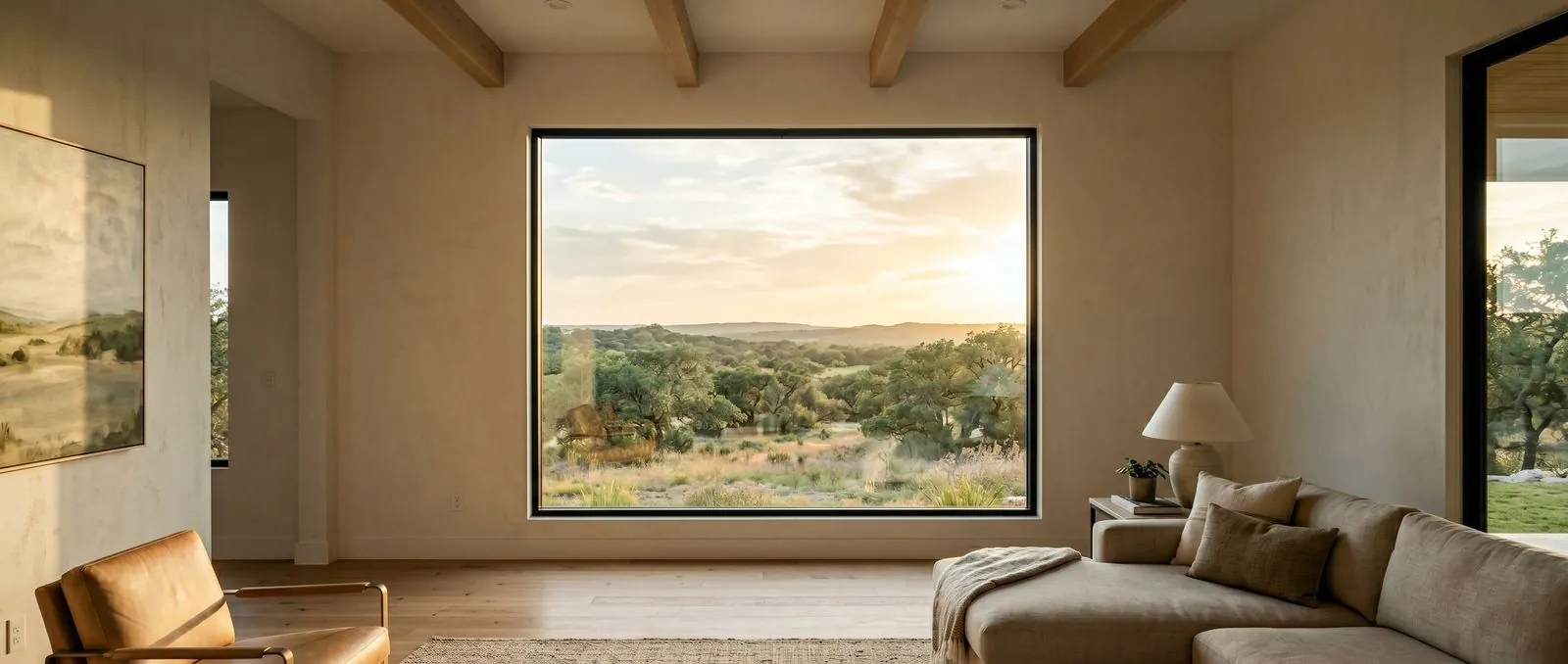

Maximum glass, minimum frame. Ideal for feature walls, corner assemblies, and window-wall mullion runs. Single lites up to 10 m² (107.6 sq ft) in Horizon and 6 m² (64.5 sq ft) in Summit; Ascent units to 1800 × 3500 mm (70 3/4 × 137 3/4 in).
| Tier | U-Factor | SHGC |
|---|---|---|
| Horizon | 0.38 | 0.25 |
| Ascent | 0.33 | 0.25 |
| Summit West | 0.22 | 0.18 |
| Summit Southwest | 0.29 | 0.20 |

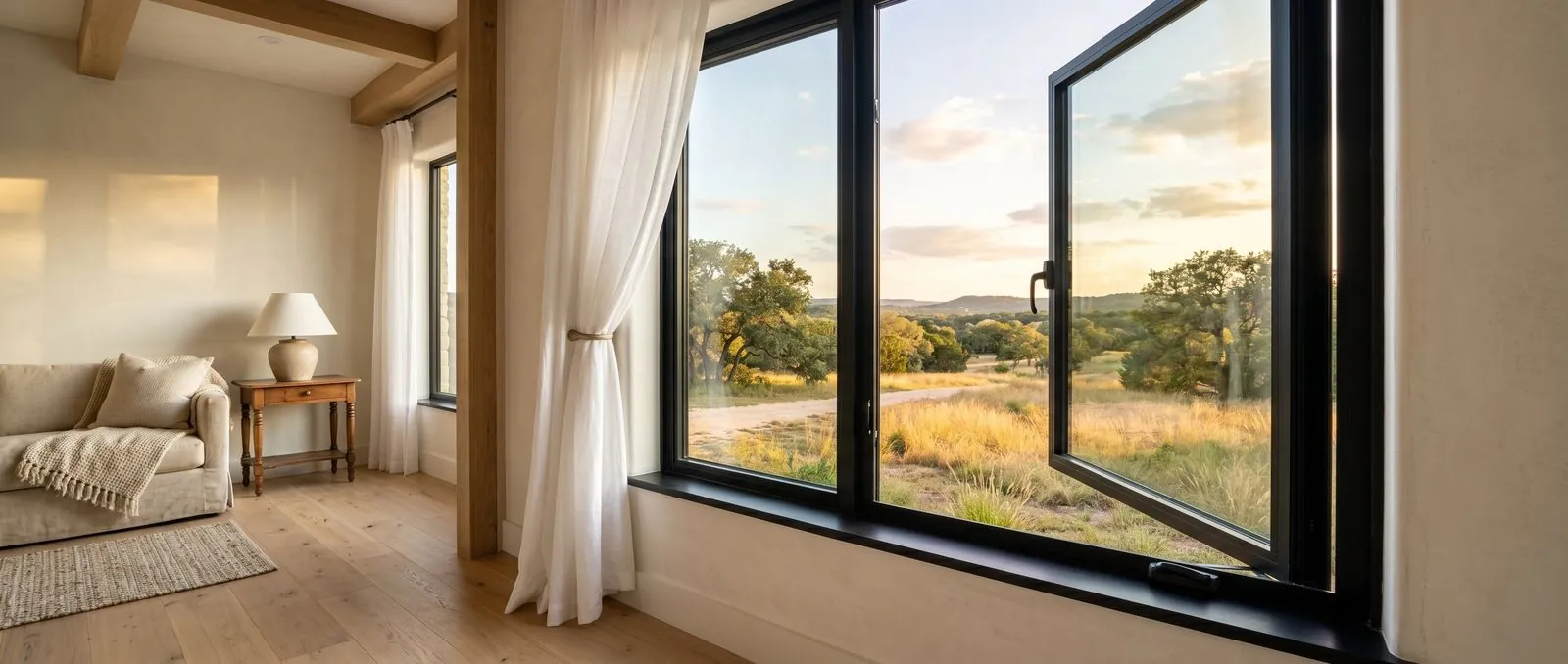

The workhorse operable. Multi-point locking, friction hinge, retractable screen. Available single-sash or paired mullion for wider openings without a fixed transom.
| Tier | U-Factor | SHGC |
|---|---|---|
| Horizon | 0.37 | 0.23 |
| Ascent | 0.39 | 0.20 |
| Summit West | 0.27 | 0.19 |
| Summit Southwest | 0.27 | 0.19 |

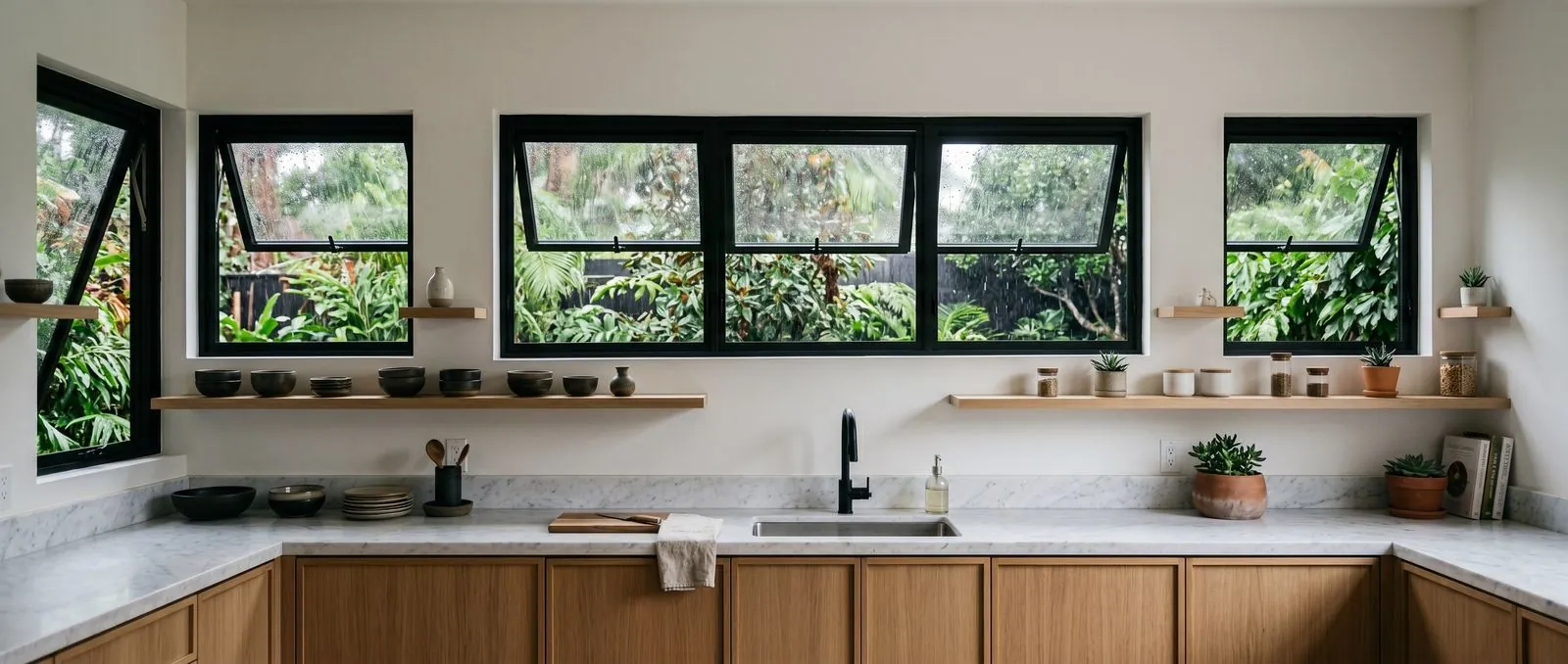

Ventilation without exposure. Perfect above stove hoods, bathroom vanities, and over other operable windows for stacked assemblies. Multi-point locking standard.
| Tier | U-Factor | SHGC |
|---|---|---|
| Horizon | 0.37 | 0.23 |
| Ascent | 0.39 | 0.20 |
| Summit West | Not offered | |
| Summit Southwest | Not offered | |

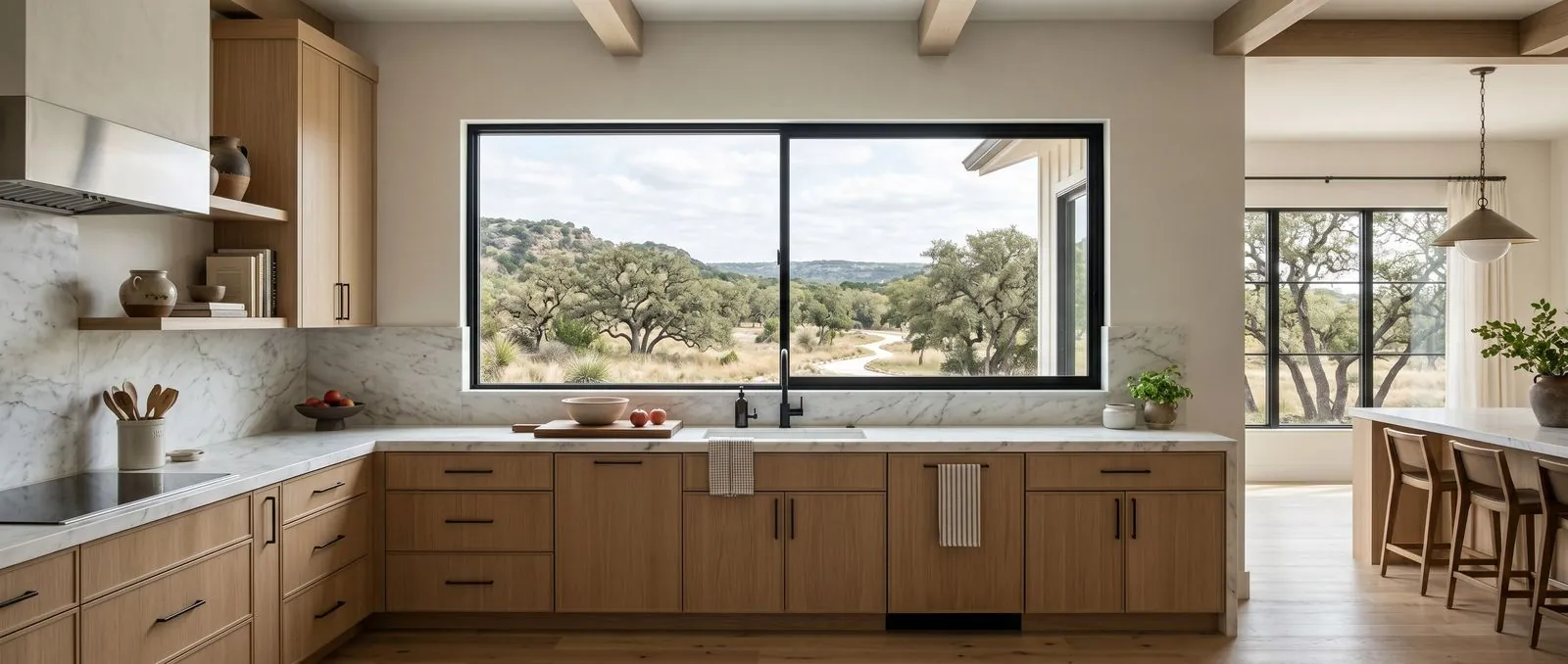

Horizontal slider for wide openings and jobsite where an operable sash can't project. Panels up to 1400 × 3048 mm (55 × 120 in) in Horizon and 1600 × 2438 mm (62 7/8 × 95 7/8 in) in Ascent.
| Tier | U-Factor | SHGC |
|---|---|---|
| Horizon | 0.40 | 0.22 |
| Ascent | 0.39 | 0.21 |
| Summit West | Not offered | |
| Summit Southwest | Not offered | |
Multi-lite fixed and operable combinations pre-mulled at the factory. Ships as assembled units — no site mulling, no field-cut mullions, no water intrusion risk.
| Tier | U-Factor | SHGC |
|---|---|---|
| Horizon | 0.38 | 0.25 |
| Ascent | 0.30 | 0.25 |
| Summit West | Not offered | |
| Summit Southwest | Not offered | |

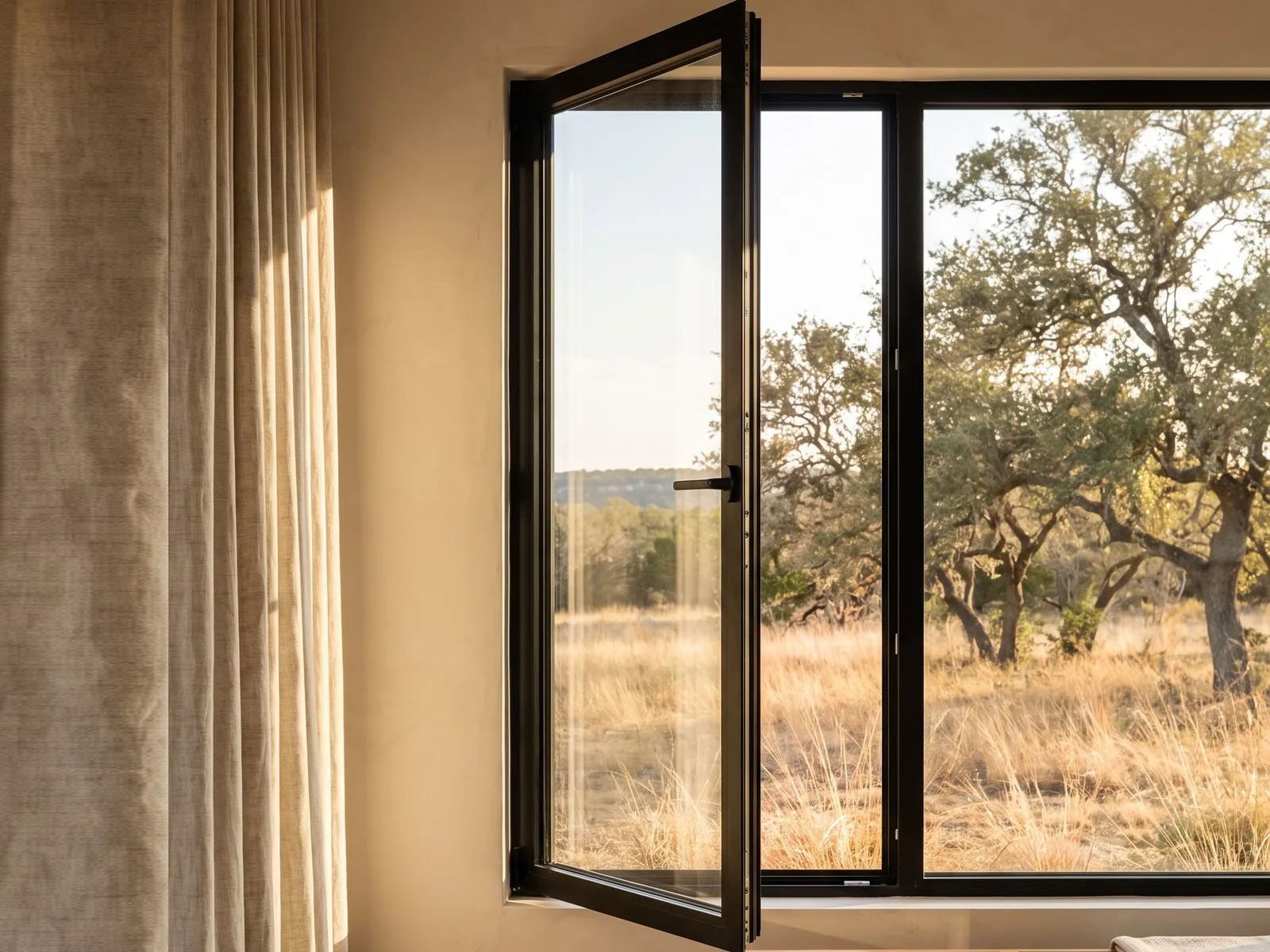

Two openings on one handle: it tilts inward at the head for secure ventilation, or swings fully inward on the side hinge for cleaning and wide-open airflow. Certified in both Summit regions. Also built in Horizon on a double-glazed 90 Series profile. The screen is black stainless mesh and opens inward with the sash; not offered in Ascent.
| Tier | U-Factor | SHGC |
|---|---|---|
| Horizon | 0.39 | 0.24 |
| Ascent | Not offered | |
| Summit West | 0.23 | 0.22 |
| Summit Southwest | 0.29 | 0.19 |
The core products are offered across the three tiers — so the same architectural detail can be specified for a production build, a custom home, or a Title-24 project without changing suppliers.
| Specification | Tier 01Horizon | Tier 02Ascent | Tier 03Summit Southwest | Tier 03Summit West |
|---|---|---|---|---|
| System | 110 / WJ110 Series | 6063-T5 Thermal Break | 80 Series | 80 Series |
| Thermal Break | Polyamide Strut | Polyamide Strut | Technoform Polyamide | Technoform Polyamide |
| Aluminum Alloy | 6063-T5 | 6063-T5 | 6063-T5 | 6063-T5 |
| Glazing (Standard) | 5 + 20Ar + 5 Low-E | 6 + 12Ar + 6 Low-E | Double Low-E, Argon | Triple 6 + 12Ar + 6 + 12Ar + 6 |
| Powder Coat | AAMA 2604 Interpon · 2605 optional | AAMA 2604 Interpon · 2605 optional | AAMA 2604 Interpon · 2605 optional | AAMA 2604 Interpon · 2605 optional |
| Hardware | CMECH Standard | Roto + Coastal 316 SS | Roto / Coastal Premium | Roto / Coastal Premium |
| U-Factor (Fixed) | 0.38 | 0.33 | 0.29 | 0.22 |
| U-Factor (Casement) | 0.37 | 0.39 | 0.27 | 0.27 |
| U-Factor (Tilt & Turn) | 0.39 | — | 0.29 | 0.23 |
| SHGC (Standard) | 0.22 – 0.25 | 0.20 – 0.25 | 0.19 – 0.20 | 0.18 – 0.22 |
| NFRC Certified | No | No | Yes | Yes |
| Target Region | Climate Zone 2 · TX · AZ | National · Custom Homes | TX · AZ · NV · NM · UT | CA · OR · WA |
Horizon and Ascent figures are manufacturer whole-window values and carry no NFRC listing. Summit is NFRC certified and its certification numbers are issued with the quotation. Product-specific U-factor and SHGC vary by opening size and glazing option — see the individual data sheets.
Features other importers charge as upgrades. We ship them on every unit, in every tier, because they're what makes a window a window — not because they're a differentiator.
Every lite tempered — inside and out. No annealed-glass surprises on the safety-glazing walk-through.
Argon-filled, Low-E insulating glass on every unit, with glass thickness set by the pane area.
Low-E on every opening, keeping solar gain low in Texas heat.
Black warm-edge spacer standard on Summit — no visible aluminum bar, no bright edge in the reveal.
CMECH or Roto multi-point hardware on all operables. Cast handles standard, with optional solid marine-grade 316 stainless steel.
Custom sizing and shapes to the millimeter — including opening geometry other importers can't or won't build.
Choose the fin setback that matches the wall assembly. 7/8", 1", and 1-3/8" setbacks available.
AkzoNobel Interpon AAMA 2604 powder coat as standard. AAMA 2605 and dual-color frames available at additional charge. Field-touch-up compatible — critical for jobsite repair.
A cross-section of installed work across Texas Hill Country custom homes and infill builds. Full portfolio in the Projects section.
Send us a plan set or an architect's schedule and we'll return a line-by-line quote with tier options and lead-time confirmation. Existing dealers can request quotes directly from the portal.
