Sliding, multi-slide, casement and swing, and pivot — four door families across the performance tiers. Thermally broken 6063-T5 aluminum, all-tempered Low-E glazing, and custom sizes and shapes as standard.
The workhorse patio slider. Heavy-duty bottom rollers, stepped multi-track sill, factory-set weep system. Panels up to 1400 × 3048 mm (55 × 120 in).
| Tier | U-Factor | SHGC |
|---|---|---|
| Horizon | 0.40 | 0.22 |
| Ascent | 0.39 | 0.21 |
| Summit West | 0.28 | 0.23 |
| Summit Southwest | 0.37 | 0.19 |

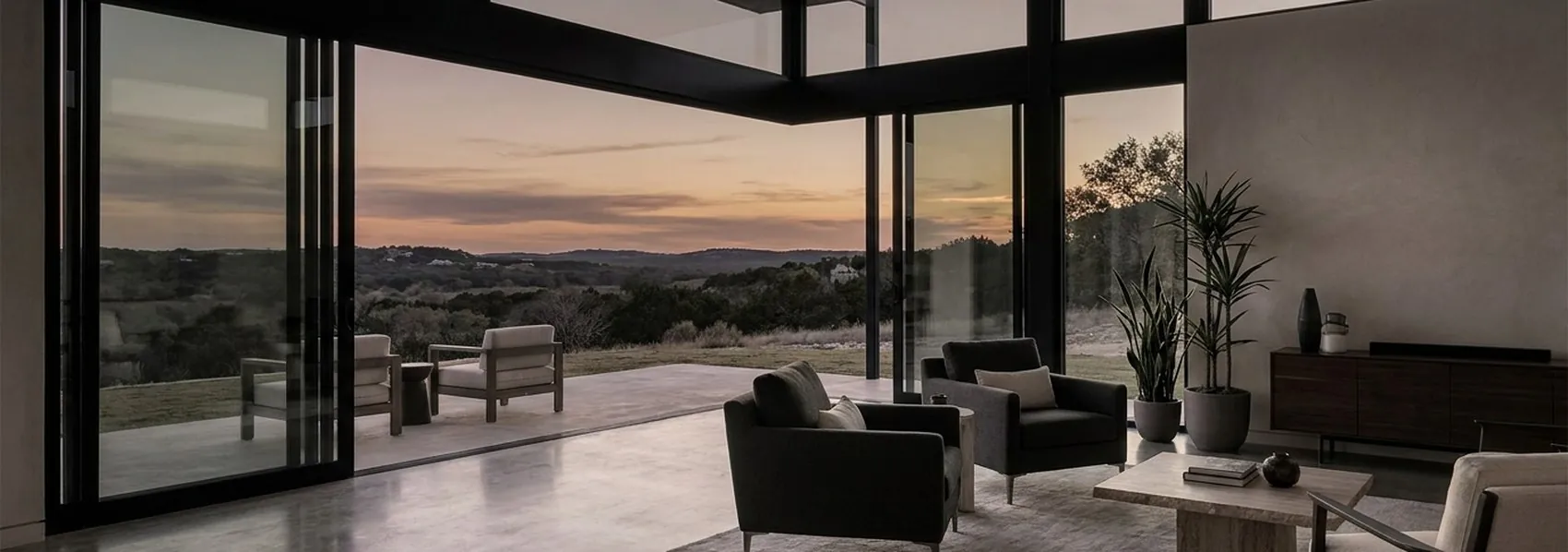

Where an opening needs more panels than the 4075 Series carries, the TY120 takes over: up to six tracks, for indoor-outdoor walls that open almost completely. Horizon series; sizes and panel counts confirmed per project.
| Tier | U-Factor | SHGC |
|---|---|---|
| Horizon | 0.38 | 0.22 |
| Ascent | Not offered | |
| Summit West | Not offered | |
| Summit Southwest | Not offered | |

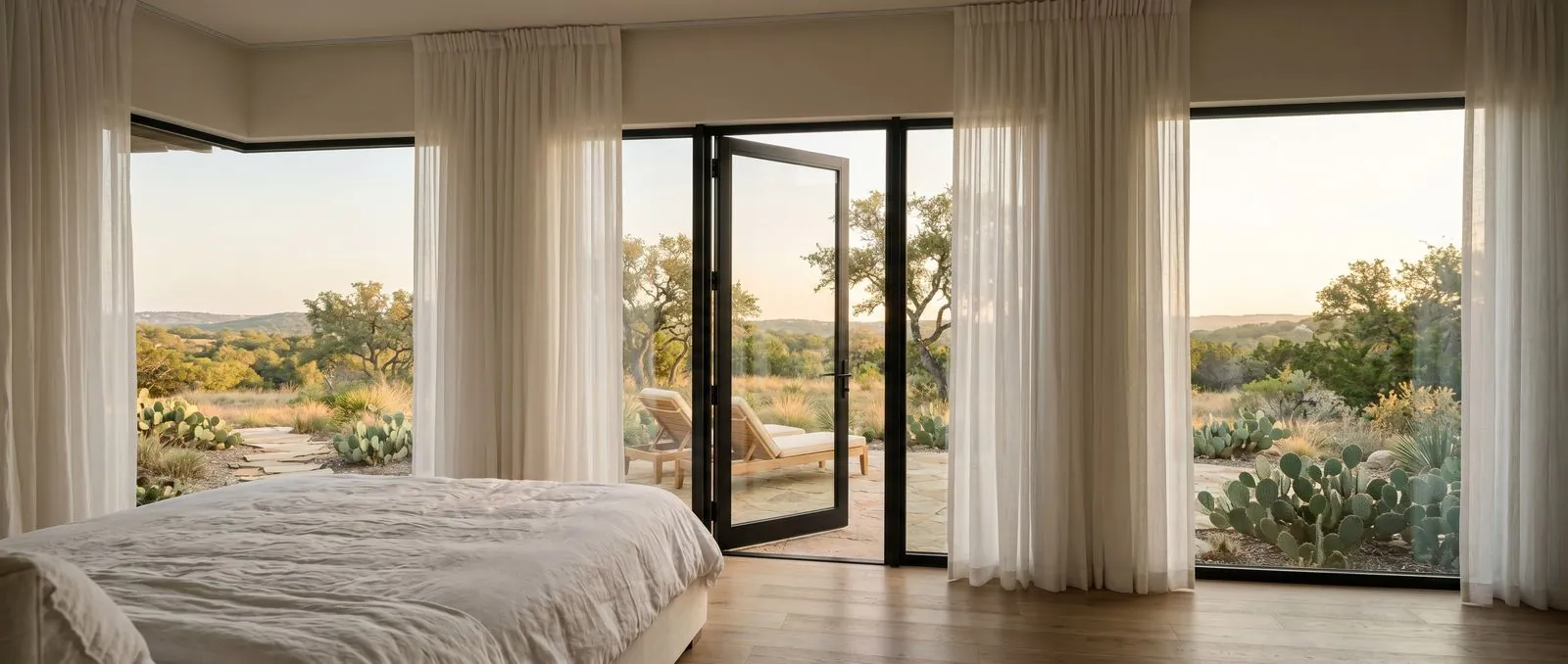

The patio and entry door on the same frame family as our casement window. Multi-point locking, threshold in matching finish, leaves up to 1000 × 2800 mm (39 1/4 × 110 1/8 in) on Horizon and Ascent; Ascent swings in or out, specified at order. Summit carries the NFRC-certified swing door.
| Tier | U-Factor | SHGC |
|---|---|---|
| Horizon | 0.39 | 0.23 |
| Ascent | 0.37 | 0.22 |
| Summit West | 0.24 | 0.19 |
| Summit Southwest | 0.33 | 0.21 |

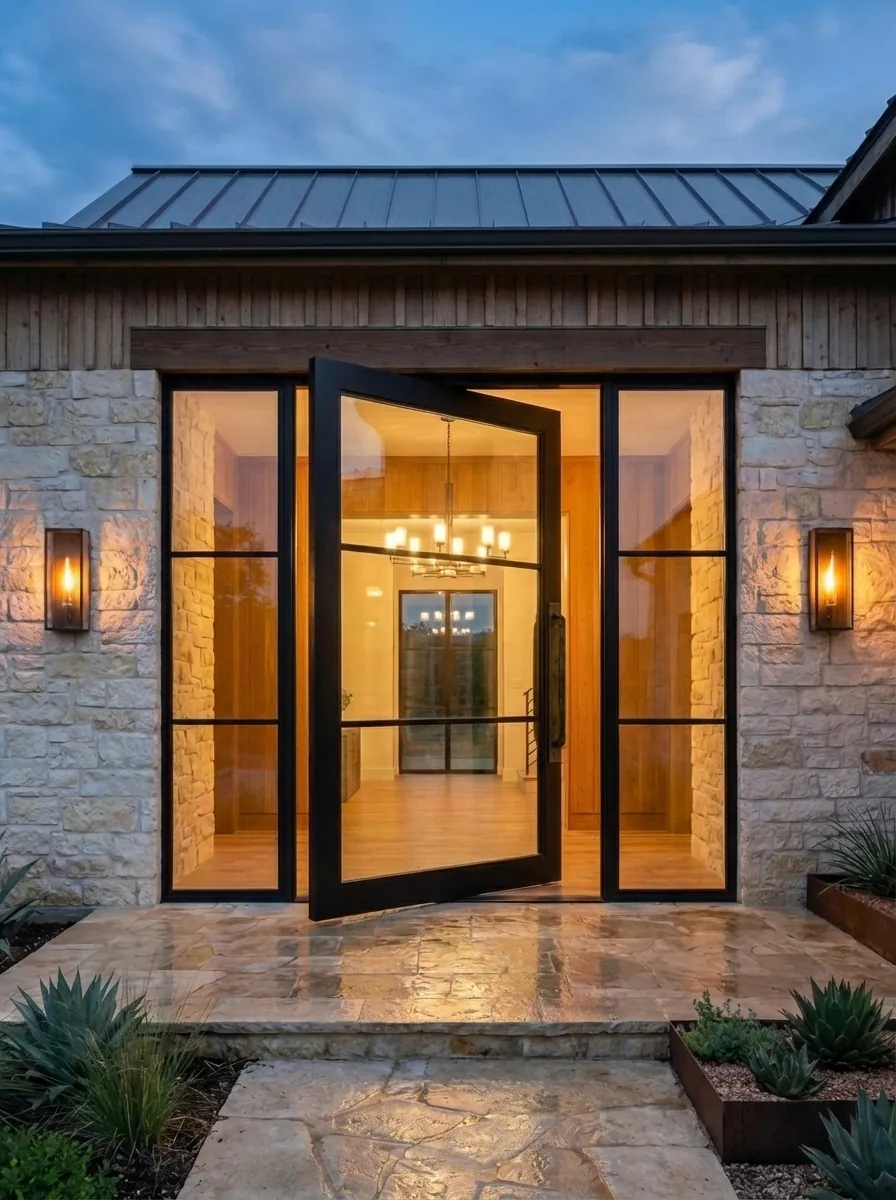

The statement entry. Framed all-glass pivot on a concealed floor pivot — double glazed, every pane tempered, built in Horizon. Leaves up to 2000 mm (78 5/8 in) wide and 8 m² (86.1 sq ft), to 500 kg.
| Tier | U-Factor | SHGC |
|---|---|---|
| Horizon | 0.40 | 0.24 |
| Summit West | Not offered | |
| Summit Southwest | Not offered | |
The core door families are offered across the three tiers. Priced for the project, engineered for the code — from a production spec to a Title-24 California build.
| Specification | Tier 01Horizon | Tier 02Ascent | Tier 03Summit Southwest | Tier 03Summit West |
|---|---|---|---|---|
| System | 4075 / WJ110 / TY120 | 6063-T5 Thermal Break | 128 Series | 128 Series |
| Thermal Break | Polyamide Strut | Polyamide Strut | Technoform Polyamide | Technoform Polyamide |
| Aluminum Alloy | 6063-T5 | 6063-T5 | 6063-T5 | 6063-T5 |
| Glazing (Standard) | 5 + 20Ar + 5 Low-E | 6 + 12Ar + 6 Low-E | Double Low-E, Argon | Triple 6 + 12Ar + 6 + 12Ar + 6 |
| Threshold | Standard Sill | Low Threshold | Flush Recessed | Flush Recessed |
| Hardware | CMECH Standard | Roto + Coastal 316 SS | Roto / Coastal Premium | Roto / Coastal Premium |
| Powder Coat | AAMA 2604 Interpon · 2605 optional | AAMA 2604 Interpon · 2605 optional | AAMA 2604 Interpon · 2605 optional | AAMA 2604 Interpon · 2605 optional |
| U-Factor (Casement Door) | 0.39 | 0.37 | 0.33 | 0.24 |
| U-Factor (Sliding, 2P) | 0.40 | 0.39 | 0.37 | 0.28 |
| SHGC (Standard) | 0.22 – 0.23 | 0.21 – 0.22 | 0.19 – 0.21 | 0.19 – 0.23 |
| NFRC Certified | No | No | Yes | Yes |
| Target Region | Climate Zone 2 · TX · AZ | National · Custom Homes | TX · AZ · NV · NM · UT | CA · OR · WA |
Horizon and Ascent figures are manufacturer whole-door values and carry no NFRC listing. Summit is NFRC certified and its certification numbers are issued with the quotation. Product-specific U-factor and SHGC vary by opening size and glazing option — see the individual data sheets.
Features other importers charge as upgrades. We ship them on every door, in every tier, because they're what makes a door a door — not because they're a differentiator.
Every lite tempered — inside and out. Zero-liability on safety-glazing on any door, any panel size.
Argon-filled, Low-E insulating glass on every door, with glass thickness set by the pane area.
Low-E on every opening, keeping solar gain low in Texas heat.
Black warm-edge spacer standard on Summit — no visible aluminum bar in the reveal.
CMECH or Roto multi-point hardware on all operables. Cast handles standard, with optional solid marine-grade 316 stainless steel.
Custom sizing and shapes to the millimeter — including opening geometry other importers can't or won't build.
Flush-recessed for interior-flow projects, high-threshold for weather exposure. Matching finish across all door families.
AkzoNobel Interpon AAMA 2604 powder coat as standard. AAMA 2605 and dual-color frames available at additional charge. Field-touch-up compatible — critical for jobsite repair.
A cross-section of installed work across Texas Hill Country custom homes and infill builds. Full portfolio in the Projects section.
Send us a plan set or an architect's schedule and we'll return a line-by-line quote with tier options and lead-time confirmation. Existing dealers can request quotes directly from the portal.
